Audio Input: Analog
Video Output: RGBs, CVBS, and S-Video (depending on console)
Audio Input: Analog
Compatibility: NTSC and PAL
Latency: LAG FREE!!

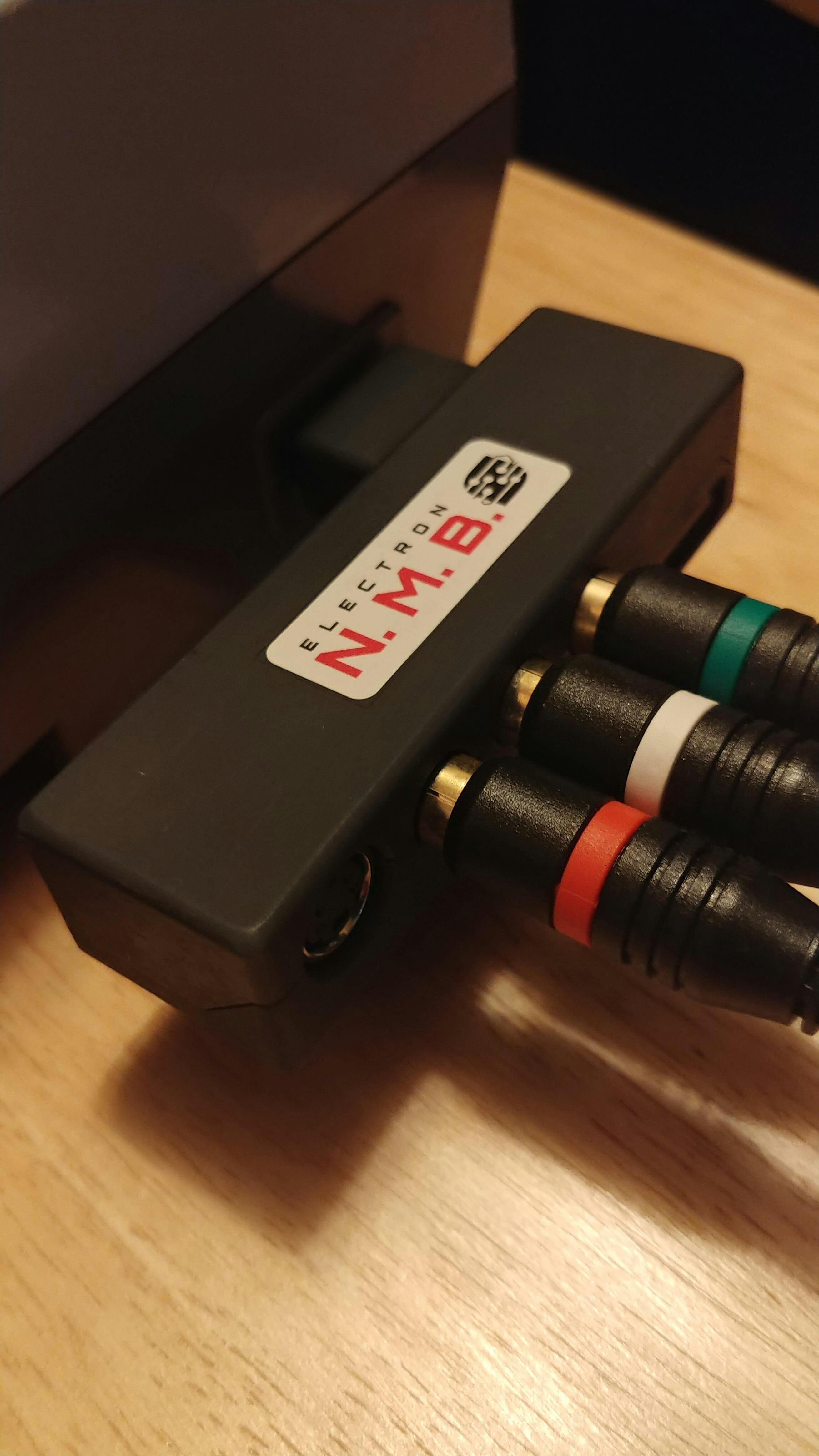

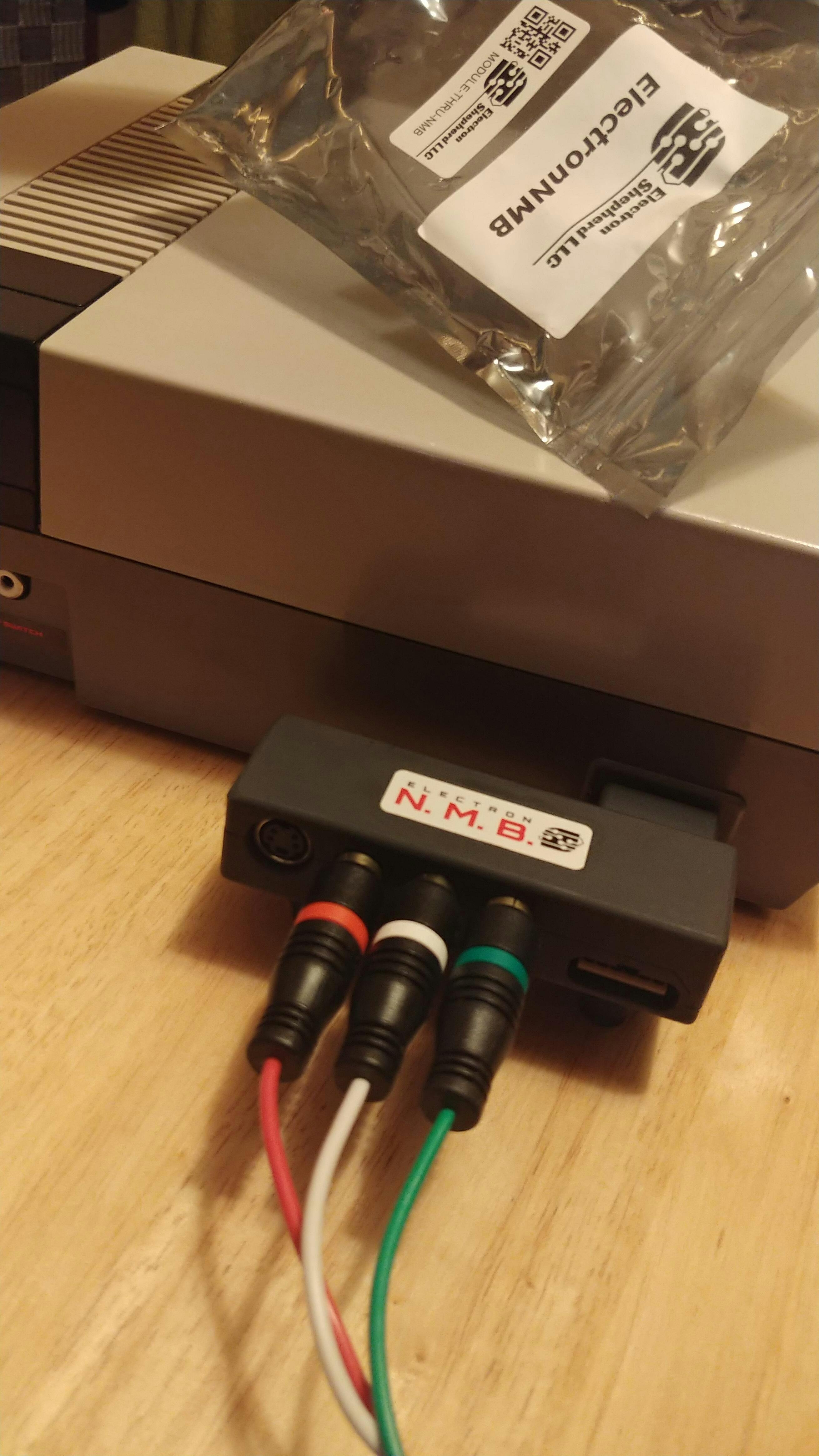

The "NMB" in ElectronNMB stands for Nintendo Multiout Breakout because that is exactly what it is! This small module attaches to the back of your SNES, N64, Famicom, and SNES Jr. and allows for simultaneous analog video output to the Composite, SNES, and/or the multiout connector using your existing high quality analog cables.
The ElectronNMB does not convert, upscale, or downscale the provided input videos.
You can safely connect to any and all of the output connectors at the same time.
There are rubber feet included with each kit that can be easily pressed into the legs of the ElectronNMB if plugging into the SNES Mini.
In order to get the highest quality output from your console, it is recommended to mate the ElectronNMB with high quality analog video cables (such as the HD Retrovision 5X RCA Male-To-Male Cable) to avoid video quality loss.
Composite (CVBS) video and analog audio are available from all of the consoles, but not all consoles are capable of outputting S-Video and RGB video.
SNES: CVBS, S-Video, and RGB
SNES Mini: CVBS (achieve S-Video and RGB w/ Voultar's SNESRGB Kit)
Famicom: CVBS
N64: CVBS and S-Video (achieve RGB w/ Voultar's N64RGB Kit)
